T-Case系列現已停產。

T-Case Shafting, Available in Europe Only

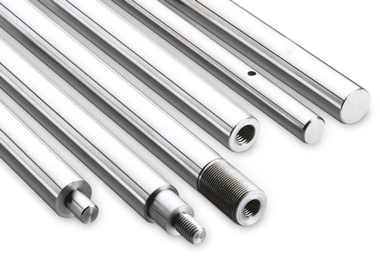

Thomson T-Case? LinearRace? Shafting is manufactured to withstand tough usage and deliver optimal performance. The T-Case Series is the latest addition to the Thomson shafting product line and a robust, economical solution. When combined with Thomson self-aligning Ball Bushing? bearings, T-Case shafting can absorb mounting surface errors and inaccuracies, often reducing the total machine cost and installation time. This make it a good fit for a variety of automation applications.

產品介紹

T-Case Specifications

Nominal Diameter [mm]	Nominal Inner Diameter [mm]	Basic Part Number	Diameter Tolerance ISO h6 [μm]	Min.Usable Length [mm]	Hardness Depth [mm]	Straightness [mm/meter]	Max. Roundness [μm]	Taper max [μm]	Weight per Meter [kg]
T-Case Solid Shafting
8	-	08 TCM	0 / -9	6000	0.6 - 1.2	0.15	2	2	0.4
10	-	10 TCM	0 / -9	6000	0.6 - 1.2	0.15	2	2	0.6
12	-	12 TCM	0 / -11	6000	0.6 - 1.3	0.15	2	2	0.9
16	-	16 TCM	0 / -11	6000	0.6 - 1.3	0.15	2	2	1.6
20	-	20 TCM	0 / -13	6000	0.9 - 1.8	0.1	2	2	2.5
25	-	25 TCM	0 / -13	6000	0.9 - 1.8	0.1	2	2	3.9
30	-	30 TCM	0 / -13	6000	0.9 - 1.8	0.1	3	3	5.5
40	-	40 TCM	0 / -16	6000	1.5 - 1.8	0.1	3	3	9.9
50	-	50 TCM	0 / -16	6000	1.5 - 1.8	0.1	4	4	15.4
60	-	60 TCM	0 / -19	6000	2.2 - 3.9	0.1	4	4	22.2
80	-	80 TCM	0 / -19	6000	2.2 - 3.9	0.1	5	5	39.5
T-Case Tubular Shafting
16	7	16 TTM CTL	0 / -11	6000	0.6 - 1.2	0.15	2	2	1.3
20	14	20 TTM CTL	0 / -13	6000	0.9 - 1.8	0.15	2	2	1.3
25	15	25 TTM CTL	0 / -13	6000	0.9 - 1.8	0.1	2	2	2.5
30	19	30 TTM CTL	0 / -13	6000	0.9 - 1.8	0.1	2	2	3.3
40	26	40 TTM CTL	0 / -16	6000	1.5 - 2.8	0.1	2	2	5.7
50	29	50 TTM CTL	0 / -16	6000	1.5 - 2.8	0.1	2	2	10.2
60	36	60 TTM CTL	0 / -19	6000	2.2 - 3.9	0.1	3	3	14.2

T-Case Highlights

Strong material. The steel used in hardened and ground T-Case is 1.1213 / CF53 for solid and 1.1221 / C60E for tubular shafts. When combined with superior grinding processes, the result is a shaft that withstands use in even the most demanding environments.
Case hardness. T-Case shafts are hardened to an exact specification of 60 - 63 HRC, delivering long life in transport grade applications.
Precise diameters. T-Case is manufactured with a diameter tolerance of h6, ensuring that your shaft is consistent from end to end.
Quality built in. Lengths are manufactured to the highest-quality standards in an ISO 9001:2008 registered facility.
Chrome-plated option. Chrome plating is available with a standard thickness of 8 - 15 μm. Choose chrome plating for applications in environments where corrosion resistance is needed.
Cut to length. Shafting can be cut and machined at the factory to meet your exact specifications, eliminating the need for a secondary step after shipping.

60 Case® LinearRace® Shafting: Fully Stocked to Keep Your Design Projects on Track

Thomson 60 Case Linear Race shafting has been popular for decades for its consistent reliability and performance. To help customers get this high-quality, lab-tested product into their hands as quickly as possible for their time-sensitive design projects, Thomson goes to great lengths.

Shafting Selector Tool: Special Machining Online Demo

With the special machining add-on to the Thomson online shafting selector tool, the burden of creating 2D drawings is relieved, and the amount of time needed to specify the machined shaft is dramatically reduced.

Watch this comprehensive demo and see how this feature offers the most commonly used machining options, which are automatically converted to manufacturable 2D drawings for download as printable PDFs or sharable links.

Try the online shafting selector tool and special machining add-on at: https://www.thomsonlinear.com/en/products/shafting

For any cases in which your machining configurations don't fall within the scope of our tool's options, Thomson application engineers are always ready to provide fast help.
